Solar Pasteurisation

Author/Compiled by
Risch Tratschin (seecon international gmbh)
Dorothee Spuhler (seecon international gmbh)

Executive Summary

Contrary to belief, it is not necessary to boil certain water to make it safe to drink. Heating water to 65°C (149°F) for 6 minutes, or to a higher temperature for a shorter time, will kill all germs, viruses, and parasites. This process is called pasteurisation (ANDREATTA 2007). Solar pasteurisation has proven to be a very low-cost disinfection method to produce drinking water out of non-turbid fresh water. However, solar pasteurisation is not that easy to implement and monitor, thus it is not a wide spread method for point-of-use water treatment.

Advantages
The system requires no additional inputs (electricity, chemicals or fossil fuels) after installation
Simple designs are available at very low cost, and this device may be built with parts available in most countries
Anyone can be trained to construct a solar cooker and there are no specific manufacturing hazards
Solar pasteurisation boxes can also be used as solar cookers for cooking meals
Compared to boiling, the pasteurisation process does not consume wood, charcoal or other biomass as energy supply (environmentally more sustainable) and does not take time and energy for its procurement
Disadvantages
Requires sunny weather and does not work during continuous rainfall, on very cloudy days, or under freezing conditions
Recontamination is possible after the water has cooled because it contains no residual disinfectant; subsequent safe storage is essential
Does not reduce turbidity, odour, taste or colour and does not remove chemical pollutants from water
While construction is low-cost, the life-cycle costs (chlorination, sand filters, UV treatment) are relatively high compared to competition (BURCH & THOMAS 1998)
Users require a thermometer or pasteurisation indicator device
Users need to keep track of containers to know which ones have been treated and to ensure that they always have treated water (batch process)
Users may need to wait for water to cool prior to use.  Cookers are made from lightweight and easily breakable materials
Boiling is sometimes preferred because it provides a visual measure of the water reaching sufficient temperature without requiring a thermometer
In Out

Precipitation, Freshwater

Drinking Water

Introduction

Factsheet Block Body

Simple techniques for treating water at home and storing it in safe containers (see HWTS) could contribute to the MDGs (see access to water and sanitation). Pasteurisation is one of many techniques to disinfect drinking water and is applicable to developing countries. Other techniques such as chlorination, ozonation or operation of wells may be more suitable particularly if a large amount of water is needed. Conversely, if a relatively small amount of water is needed, pasteurisation systems, like other HWTS methods have the advantage of being able to be scaled down with a corresponding decrease in cost. In other words, if only little money is available, you can use pasteurisation to get a little clean water, perhaps enough for a family, but not a village (ANDREATTA 2007).

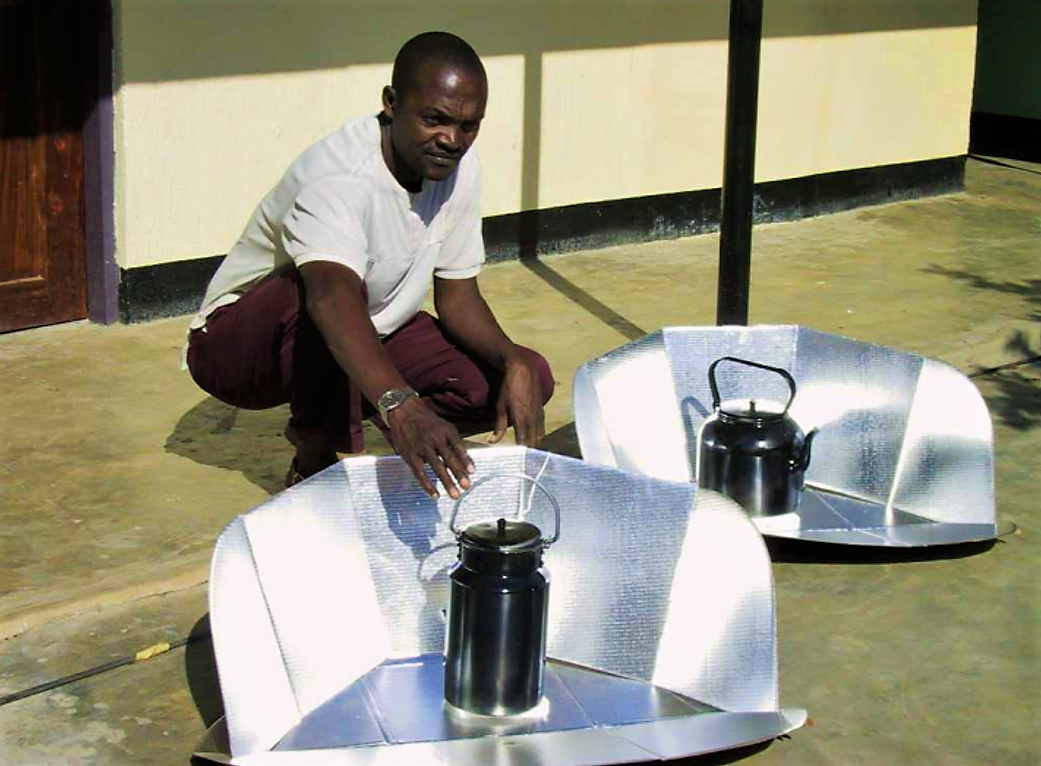

A solar cooking device with the black pan containing the water, and the reflecting panel increasing the efficiency of the pasteurisation process. Source: METCALF (2006)
A solar cooking device with the black pan containing the water, and the reflecting panel increasing the efficiency of the pasteurisation process. Source: METCALF (2006)

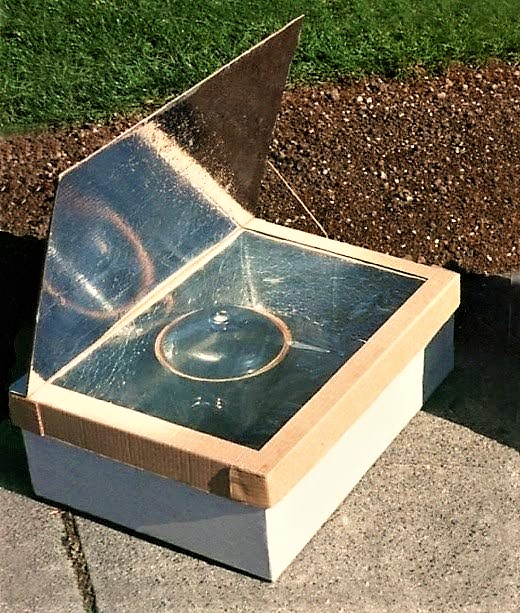

A solar pasteurisation device in the shape of a box with a glass cover and a reflecting interior and folding lid. The water container is put inside the box and heated with solar heat. Source: CAWST (2009)
A solar pasteurisation device in the shape of a box with a glass cover and a reflecting interior and folding lid. The water container is put inside the box and heated with solar heat. Source: CAWST (2009)



Together with boiling, the WHO Guidelines for Drinking Water call pasteurisation a thermal heat technology, but do not directly recommend pasteurisation to be applied for producing drinking water (WHO 2011).

Alternatively to boiling, solar energy might have a role to play in improving water quality in those regions that enjoy a hot, sunny climate (JOYCE et al. 1996). Today, the solar disinfection (SODIS) technique seems the most widely applied when it comes to using solar energy for water disinfection. SODIS focuses on a combination of the antibacterial role of solar UV radiation and elevated temperature, while solar pasteurisation is making use of the thermal solar energy only (SAFAPOUR & METCALF 1999).

Today, throughout the world, beverages such as milk, fruit juice, beer and wine are disinfected through pasteurisation on an industrial scale. Consumers are familiar with and trust the process of pasteurisation. Apart from water, milk can also be pasteurised at home, a procedure used to make it more durable. In case of milk, pasteurisation is reached when heated above 63 °C for 30 minutes (WHO 2011).

What is solar pasteurisation?

Factsheet Block Body

(Adapted from CAWST 2009)

Pasteurisation is the process of disinfecting water by heat or radiation without boiling. Typical water pasteurisation achieves the same effect as boiling, but at a lower temperature (usually 65-75°C/ 149-167°F), over a longer period of time. A simple method of pasteurising water is to put blackened containers with water in a solar cooker. The solar cooker reflects sunlight onto the container, which heats up the content. The cooker may be an insulated box made of wood, cardboard, plastic, or woven straw, with reflective panels to concentrate sunlight onto the water container. It may also be an arrangement of reflective panels, or a reflective “satellite dish”, on which the water pot sits. The box cooker should be frequently repositioned to ensure it is catching all available sunlight (and never in shade). A thermometer or indicator is needed to tell when the required temperature is reached for pasteurisation to monitor the required exposure time of six minutes (ANDREATTA 2007). Common devices for monitoring the water temperature use either beeswax, which melts at 62°C (143.6°F), or soybean fat, which melts at 69°C (156.2°F). A simple device known as the Water Pasteurisation Indicator (WAPI) has been developed at the University of California. Water may take one to four hours or more to heat to those temperatures.

The Water Pasteurisation Indicator (WAPI) indicates when water is safe to drink. When the soybean wax inside a small tube melts at about 70°C (158°F), the wax changes from solid (left) to liquid (right) state. An iron ring ensures that the tube is staying in the same position while in the solar cooker. Source: METCALF (2006)
The Water Pasteurisation Indicator (WAPI) indicates when water is safe to drink. When the soybean wax inside a small tube melts at about 70°C (158°F), the wax changes from solid (left) to liquid (right) state. An iron ring ensures that the tube is staying in the same position while in the solar cooker. Source: METCALF (2006)



Heating the water to the pasteurisation temperature rather than the boiling point reduces the energy required by at least 50% (ANDREATTA 2007). However, solar pasteurisation is only effective if treated water is protected from post-treatment contamination during storage (WHO 2011).

How does it remove contamination?

Factsheet Block Body

(Adapted from CLASEN et al. 2007)

Boiling or heating with fuel is perhaps the oldest means of disinfecting water at the household level and is also one of the most effective. It kills or deactivates all classes of waterborne pathogens, including protozoan cysts that have shown resistance to chemical disinfection and viruses that are too small to be mechanically removed by microfiltration. As the water heats due to radiation from the sun, the increased temperature will kill or inactivate an important part of commonly waterborne pathogenic bacteria, viruses, helminths, and protozoa at a temperature between 65° and 75°C (149-167°F) (CAWST 2009). But, spores are more resistant to thermal inactivation than vegetative cells; treatment to reduce spores requires a thermal treatment up to boiling point and must ensure sufficient temperature and time (WHO 2011). Furthermore, solar pasteurisation does not improve turbidity, odour, taste, colour or chemical contamination.

As temperatures reach 50°C or greater, pathogenic microbes are inactivated. The temperatures which cause approximately a 1-log decrease in viability within 1 min are 55°C for protozoan cysts; 60°C for E. coli, enteric bacteria, and rotavirus; and 65°C for hepatitis A virus (3, 5, 7–9, 16). When the WAPI wax melts at about 70°C, the cumulative lethal effect is determined by the gradual increase in temperature, often at least 30 min from 50 to 70°C, as well as the gradual cooling once the water is removed. In addition, the water at the bottom of the black jar is often 5 to 10°C cooler than the water at the top of the jar. Microbes in the upper portion will have been inactivated before those in the bottom portion, where the WAPI is located (SAFAPOUR & METCALF 1999).

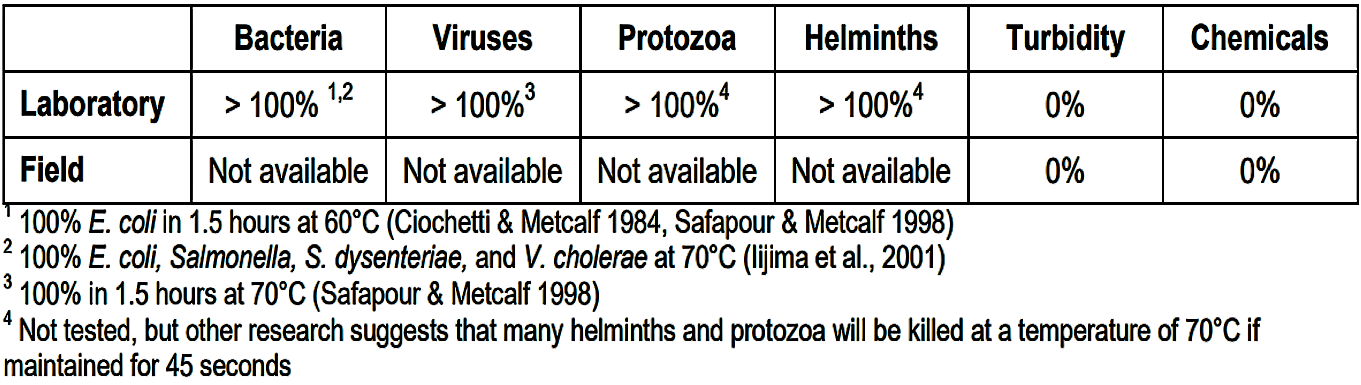

While the treatment efficiency of solar pasteurisation has been proven in the laboratory for all waterborne pathogens, test in the field are still scarce. Source: CAWST (2009)
While the treatment efficiency of solar pasteurisation has been proven in the laboratory for all waterborne pathogens, test in the field are still scarce. Source: CAWST (2009)



Pasteurisation time decreases exponentially with increasing temperature. Above 50°C, time decreases at roughly a factor of 10 for every 10°C increase in pasteurisation temperature. Viruses appear the hardest to kill and essentially set the boundary for acceptable time-temperature processes (BURCH & THOMAS 1998). In rural Kenya, a simple thermo indicator which changes colour at 70°C was applied to show household members when pasteurisation temperature had been reached. This increased the number of households whose drinking water was free of coliforms from 10.7 to 43.1% and significantly reduced the incidence of severe diarrhoea compared to a control group (IIJIMA et al. 2001).

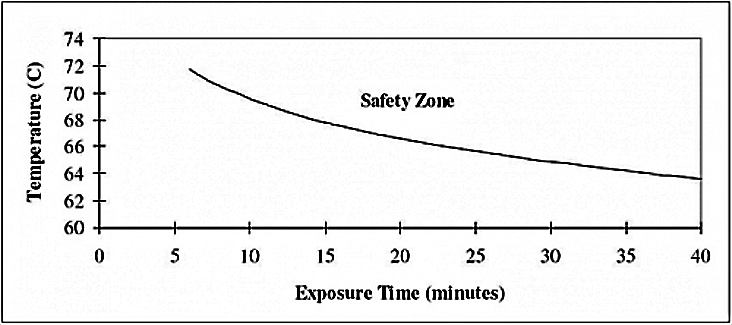

Pasteurisation is ensured if the safety zone above the safety zone curve is reached. For example, if 68 degrees Celsius are maintained for at least 15 minutes then pasteurisation has occurred and the water is drinkable. Source: RIT (2007)
Pasteurisation is ensured if the safety zone above the safety zone curve is reached. For example, if 68 degrees Celsius are maintained for at least 15 minutes then pasteurisation has occurred and the water is drinkable. Source: RIT (2007)



Different solar pasteurisation devices

Factsheet Block Body

Literature distinguishes between batch devices and flow-through solar devices. Batch devices are used to heat water on a home scale with a simple solar cooker. While potentially inexpensive, durability of the solar box needs further investigation. Compared to other energy sources it can save fuel costs, but not labour costs, which are still relatively high (BURCH & THOMAS 1998). A portable version is the AquaPac, a low cost polyethylene plastic with UV inhibitors added, and air-filled bubble pack sheeting (NWP 2010). An example for an enhanced batch device is the solar puddle, which essentially is a puddle in a greenhouse. A combination of (black) plastic sheeting is put in a shallow pit and then filled with water to be pasteurised by the solar heat. On days with good sunshine the required temperature with a water depth of up to 62 mm (2 1/2 inches) can be reached (ANDREATTA 2009). Another way to pasteurise water is to use flow-through pasteurisation devices. They can be enhanced with a heat exchanger by recycling heat from the outgoing pasteurised water.

Water flows through a solar box cooker (down left), one end of which is connected to a thermostatic valve and the other to a storage tank for the untreated water supply. This storage tank can include a filter (sand/ gravel/ charcoal) that does the preliminary filtering. The thermostatic valve opens at the correct temperature, allowing the pasteurised water to drain out of the tubing and into a second storage vessel for treated water. As the treated water drains from the solar box cooker, contaminated water from the storage tank automatically refills the tubing. Once this cool water reaches the valve, the valve shuts and the pasteurisation process begins anew. The heat exchanger in-between enables recycling the heat in the outgoing pasteurised water. Once the water has been pasteurised and released, the energy in this water can be used to preheat the incoming water. Source: BURCH & THOMAS (1998)
Water flows through a solar box cooker (down left), one end of which is connected to a thermostatic valve and the other to a storage tank for the untreated water supply. This storage tank can include a filter (sand/ gravel/ charcoal) that does the preliminary filtering. The thermostatic valve opens at the correct temperature, allowing the pasteurised water to drain out of the tubing and into a second storage vessel for treated water. As the treated water drains from the solar box cooker, contaminated water from the storage tank automatically refills the tubing. Once this cool water reaches the valve, the valve shuts and the pasteurisation process begins anew. The heat exchanger in-between enables recycling the heat in the outgoing pasteurised water. Once the water has been pasteurised and released, the energy in this water can be used to preheat the incoming water. Source: BURCH & THOMAS (1998)



Flow-through devices have several advantages over the simpler batch processes. First, potable water becomes available throughout the day as new increments of treated water are added to the clean storage vessel. Second, this type of unit can adapt to variable solar conditions and is an automatic process, also decreasing the likelihood of an accident occurring when transferring water in and out of a batch unit e.g. a solar cooker jar (ANDREATTA 2007). Flow-through devices can make use of wasted heat like the one generated in tra­ditional clay ovens, so called “chullis” (ISLAM & JOHNSTON 2006). The main drawback of flow-through solar pasteurisation devices is the difficulty of ensuring safe storage, as the water needs to be transferred to a new recipient before consumption.

The Solar Pasteuriser with Integral Heat Exchanger (SPIHX) collects and converts solar energy to heat energy to bring water to pasteurisation levels. Once pasteurised, the thermostat valve opens and the water flows through the bottom channel. The middle aluminium sheet facilitates heat exchange between the hot outgoing pasteurised water and cold incoming contaminated water (RIT 2007).

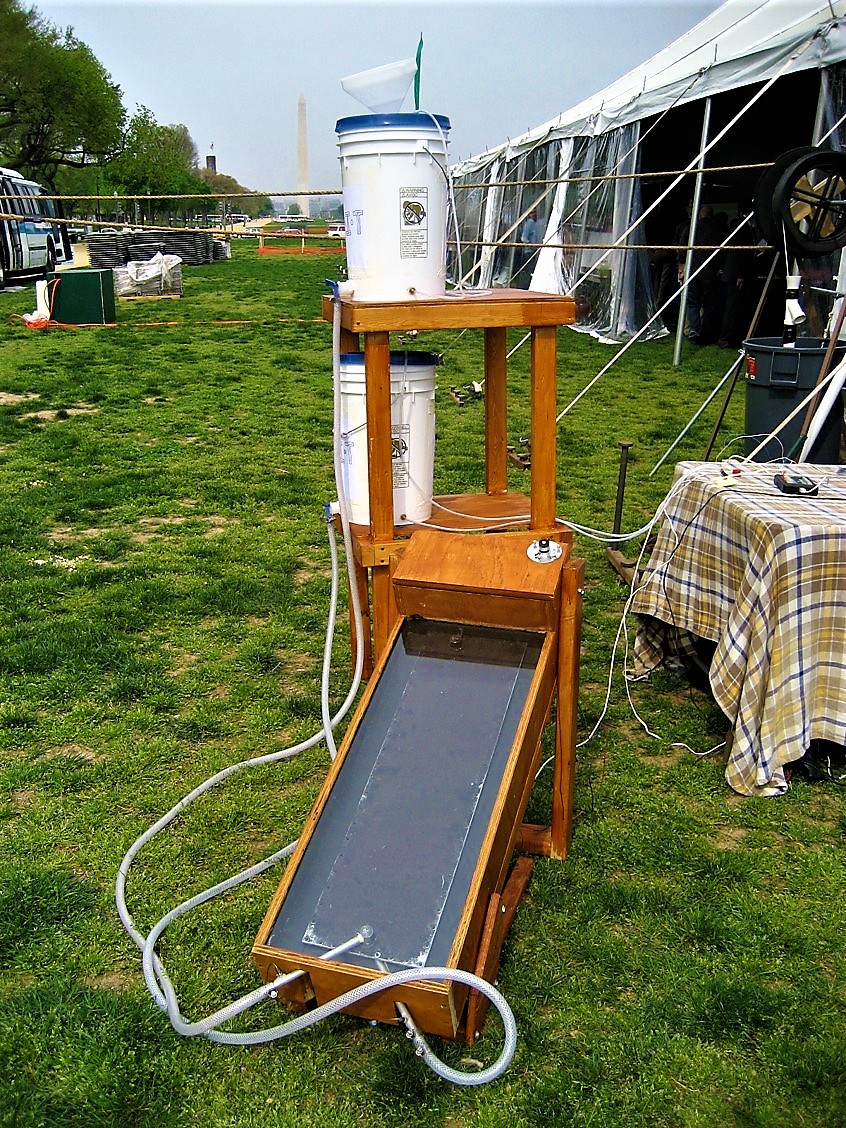

The Solar Pasteuriser with Integral Heat Exchanger (SPIHX). Source: RIT (2007)
The Solar Pasteuriser with Integral Heat Exchanger (SPIHX). Source: RIT (2007)



Applicability

The solar pasteurisation method is effective to remove bacteria, viruses, protozoa and helminths from raw fresh water. It cannot produce drinking water from raw water with high turbidity and dissolved matter. While the removal capacity has predominantly been proved in laboratory tests, the solar pasteurisation method seems more suitable on household level rather than for producing high quantities of drinking water. Because it relies on solar energy its effectiveness depends on the daily hours of sunshine in the area of application.

Solar pasteurisation might be an option on both, the village and household level. But household usage is more competitive because village-scale alternatives have much lower treatment cost. Existing solar devices have water disinfection costs that are an order of magnitude less than boiling. Solar thermal pasteurisation with existing manufactured devices costs more than the remaining alternatives but is highly effective and lowest in maintenance (BURCH & THOMAS 1998).

Quite some solar pasteurisers that have been developed are an educational tool or curiosity rather than practical methods of producing safe water applicable in developing countries on a large scale.
