13 June 2019

Controlled Drainage

Author/Compiled by
Corinne Waelti (seecon international gmbh)
Dorothee Spuhler (seecon international gmbh)

Executive Summary

Controlled drainage is a precipitation harvesting method used to reduce short-term water related stress on plants, such as during flooding or drought. With the construction of a water control system, drainage outlets can be artificially set at levels between the surface of the soil and the bottom of the drain. Hence, stored water can be released in water-scarce periods in order to balance out water availability. However, this method cannot supply enough water for longer water-scarce episodes and is therefore unsuitable for dry areas.

Advantages
May reduce nitrate in drainage water by 25-40%
Can reduce short-term water related stress (such as lack of rainfall) and therefore increase crop yield
Disadvantages
Construction requires expert skills, operation needs good knowledge
Subsequent rainfall may lead to excessive soil moisture
Cannot be used for fertiliser application, as groundwater would be polluted
Needs a uniform soil profile
Does not meet long-term water related stress
In Out

Precipitation, Freshwater

Freshwater, Food Products

Introduction

Factsheet Block Body

Controlled drainage is a method of water harvesting for crop production, manipulating the underground water level. As it can only be applied to level fields (with a slope of maximally 1%), its applicability is strongly limited (BUSMAN & SANDS 2002).

With controlled drainage, water loss can be reduced by between 15 and 35 per cent. As infiltration of water is reduced, fewer nutrients are washed out. Therefore, one main advantage of this system compared to other measures (such as, for example conventional drainage or surface groundwater recharge, subsurface groundwater recharge and other precipitation harvesting measures) is the reduced loss of nitrate (see also the nutrient cycle) (BUSMAN & SANDS 2002). On the other hand, surface runoff is higher, because the soil has less space to hold back water.

Basic design principles

Factsheet Block Body

Controlled drainage systems differ from conventional drainage by simple water control structures placed at various locations within the system. The height of the stored water can therefore be manipulated in order to optimise the groundwater level and store infiltrated rain underground for crop production.

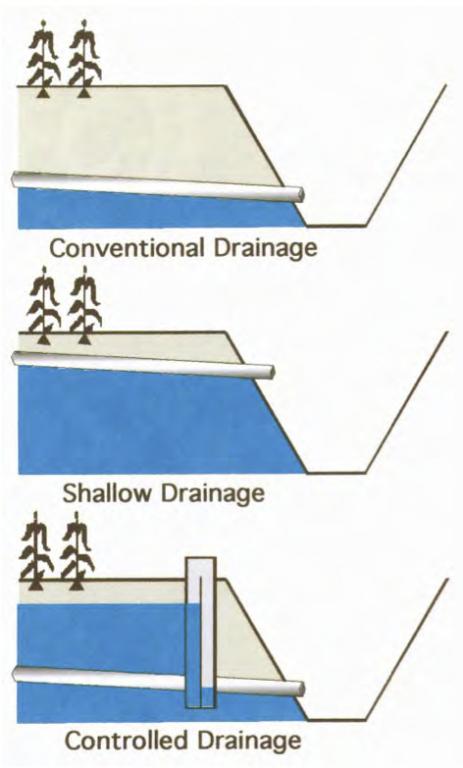

Different drainage systems. Source: BUSMAN & SANDS (2002)
Differences of controlled drainage to other drainage systems. Source: BUSMAN & SANDS (2002)



Many different designs for controlled drainage systems exist, which can be differentiated between manually or automatically operated structures.

Controlled drainage systems are sensitive to topography and the amount of rainfall, making it important to consider the following limiting factors: for one part, the ground needs to be even with a constant slope of less than 1% (in order to allow accurate control of the water level according to crop root depth). For steeper grounds, this precipitation harvesting method cannot be implemented economically. Instead, other measures such as field trenches, bunds, micro basins and planting pits would be better suited. Furthermore, controlled drainage systems are not useful for very dry areas, as they can only help to reduce short-term related water stress. Longer time periods without rainfall need other rainwater harvesting measures, such as field trenches, bunds, conjunctive use or micro basins.

Desing of a controlled drainage system. LALONDE and HUGHES-GAMES 1997
Design of a controlled drainage system. Source: LALONDE and HUGHES-GAMES (1997)



Cost considerations

Factsheet Block Body

Adapted from COOK et al. (2006)

In Illinois (USA), installations of a controlled drainage system lead to average costs of $120 USD per hectare. However, these costs may vary according to the complexity of the topography.

Costs may be lower if already existing drainage systems are converted in order to enable controlled drainage. Due to the existing structure available, lower investments are needed, ranging from $50 to $100 USD per hectare.

Installing a water control structure used in drainage water management. UIEXTENSION n.y.
Control drainage system. Source: UIEXTENSION (n.y.)



Health aspects

Factsheet Block Body

Adapted from COOK et al. (2006)

Water quality - and therefore human health conditions - can be improved through controlled drainage systems: as contaminated water is stored in the soil profile over an extended amount of time, its chemical concentration (such as nitrates and other fertilisers or pesticides) is lowered, leading to a decreased wash out into the ground water and therefore higher water quality and better premises for human health.

Operation and Maintenance

Factsheet Block Body

Operating a controlled drainage system is complex compared to other rainwater harvesting measures. The main reason is the need for broad knowledge about the best time to raise or lower the water in order to effectively run a drainage system.

At a glance

Factsheet Block Body

Working principle

Controlling the drainage system helps to monitor the groundwater level and influence the amount of water stored or released.

Capacity/adequacy

Only applicable to level fields with a slope of less than 1%.

Performance

Loss of chemicals (such as nitrates) is reduced in comparison to conventional drainage systems because water is stored in the soil for an extended amount of time. Therefore, groundwater and other receiving water bodies are better protected from pollution by chemicals.

Costs

Investment costs are dependent on whether the system has to be newly constructed or only adapted.

Self-help compatibility

Expert skills are needed for design and construction; specific skills are needed for operation and maintenance.

O&M

The operation of such a system is difficult because good knowledge about the best timing for release or storage of water is needed.

Reliability

On-going observation is necessary in order to regulate the water level.

Main strength

Short-term water stress can be reduced, leading to increased crop yield.

Main weakness

It is difficult to handle such a system most effectively.

Applicability

The applicability of controlled drainage systems is limited by two factors: the topography and the amount of rainfall. The ground needs to be even with a constant slope of 1%, at most. If the field is steeper, controlled drainage system cannot be implemented economically. Other water harvesting measures would be more suited. Even though controlled drainage systems can reduce short-term water scarcity, they are not able to overcome longer periods without precipitation and are therefore not suitable for extremely dry areas.
