Bank Filtration

Author/Compiled by
Risch Tratschin, Dorothee Spuhler (seecon international gmbh)
Dorothee Spuhler (seecon international gmbh)

Executive Summary

Bank filtration is the infiltration of surface water, mostly from a river system into a groundwater system induced by water abstraction close to the surface water (e.g. a river bank). This water abstraction is commonly done by operating wells. As the water flows through the soil, it is filtered and its quality hence is improved. In the context of developing or newly-industrialised countries, bank filtration may contribute to a more sustainable water cycle by recharging stressed groundwater bodies with filtered surface water (SHARMA & AMY 2009; HUELSHOFF et al. 2009).

Advantages
Improves water quality by removing particles (suspended solids), organic pollutants, microorganisms, heavy metals and nitrogen
Dampens concentration peaks (shock loads) associated with spills (in river/lake) and dampens temperature peaks (SHARMA & AMY 2009)
Low cost or cost effective natural treatment process that can also reduce costs for subsequent treatment (e.g. chemical usage for disinfection or run-time of activated carbon filters is extended) (SCHMIDT et al. 2003)
Low requirements of skills, energy and chemicals
Simple technology: Easy implementation and little maintenance (depending on purpose of output water) (HUELSHOFF et al. 2009)
Increased storage capacity to balance supply and demand in areas with high variations of precipitation and run-off or to buffer extreme climatic conditions (floods, droughts)
Disadvantages
Enhanced clogging of the infiltration zone is likely to be observed with high levels of suspended solids (especially in equatorial countries) that may render BF unsustainable (HUELSHOFF et al. 2009)
High organic pollution and higher mean temperatures (often found in developing countries) both promote microbial growth and may lead to oxygen depletion, thereby lowering the removal efficiency of BF systems (HUELSHOFF et al. 2009)
The presence of dissolved heavy metals (e.g. arsenic) may severely impair BF quality (HUELSHOFF et al. 2009)
Polar, persistent organic substances are often not completely removed during underground passage (dependent on residence time, length of subsoil passage, redox status) (SCHMIDT et al. 2003)
Other post-treatment methods are necessary such as oxidation and adsorption to reach drinking water quality
In Out

Precipitation, Freshwater

Freshwater, Drinking Water

Introduction

Factsheet Block Body

Bank Filtration (BF) has been common practice in many European cities for more than 100 years. It was originally initiated to remove pathogens and suspended solids from increasingly polluted surface waters. Increasing demand required adaptations such as sand layers incorporated in percolation ditches (SCHMIDT et al. 2003).

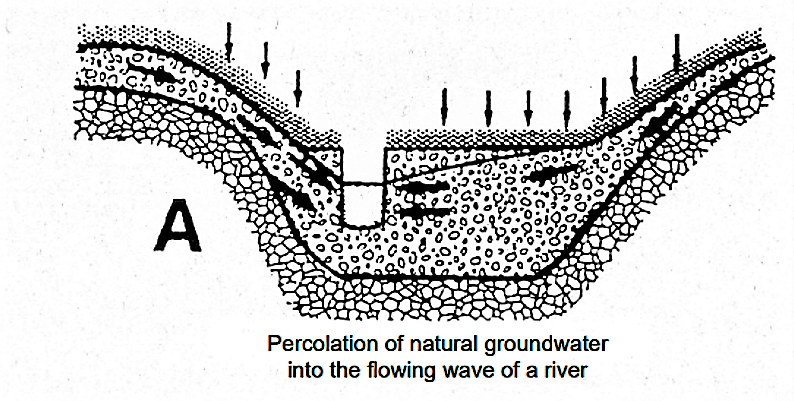

River flow and surrounding groundwater levels influence each other: groundwater usually originates from precipitation and percolates into the flowing wave of the river particularly in low-flow periods. In periods of high flow however, river water infiltrates into the aquifer
River flow and surrounding groundwater levels influence each other: groundwater usually originates from precipitation and percolates into the flowing wave of the river particularly in low-flow periods. In periods of high flow however, river water infiltrates into the aquifer. Source: SCHMIDT et al. (2003)



For drinking water production, BF is regarded as a possible pre-treatment step within the multi barrier approach in the overall treatment chain recommended by the WHO (2011). BF can potentially reduce or stabilise the microbial, natural organic matter and particulate load. It makes drinking water safer and more acceptable for the consumer, but not all undesired substances can be removed during soil and aquifer passage (SCHMIDT et al. 2003; HUELSHOFF et al. 2009, Relevance and Opportunities). The BF method prevents from shock loads and assures the removal of particles, biological contaminants and biodegradable compounds (SCHMIDT et al. 2003). Furthermore it allows for temperature adjustment.

Besides the treatment of surface water for drinking purposes, BF is also a managed aquifer recharge (MAR) technique, since the water flows through the soil and mixes with the existing groundwater from the aquifer. MAR is used to enhance the quality of treated sewage and surface water for both drinking and non-drinking purposes and prevents overuse of aquifers, saltwater intrusion and land subsidence (also see soil aquifer treatment, surface groundwater recharge and subsurface groundwater recharge).

How Does Bank Filtration Work?

Factsheet Block Body

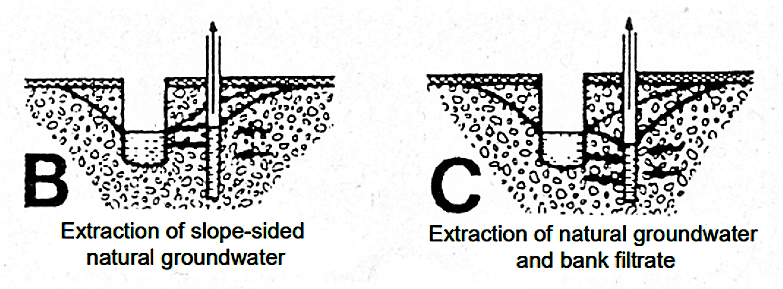

With the construction of a production well in a river valley, water is abstracted from slope-sided natural groundwater as long as the pumping water level is not lowered too much (B). Increased pumping action (C) creates a pressure head difference between the river and the aquifer and induces the river water to flow through the riverbed towards the pumping well that consequently extracts a mixture of groundwater (originally present in the aquifer) and bank filtrate. The proportions of both kinds of water in the extracted water can vary depending on both extraction rate and river flow
With the construction of a production well in a river valley, water is abstracted from slope-sided natural groundwater as long as the pumping water level is not lowered too much (B). Increased pumping action (C) creates a pressure head difference between the river and the aquifer and induces the river water to flow through the riverbed towards the pumping well that consequently extracts a mixture of groundwater (originally present in the aquifer) and bank filtrate. The proportions of both kinds of water in the extracted water can vary depending on both extraction rate and river flow. Source: SCHMIDT et al. (2003)



BF is the abstraction of water from aquifers that are hydraulically connected to a surface water body, which in most cases is a river or a riverine system. By pumping from wells adjacent to a surface water body, the groundwater table is lowered and water from the surface water body infiltrates into the aquifer. This so-called bank filtrate percolates through the soil towards the production wells (e.g. a borehole) where it mixes with the ambient (or natural) groundwater (HISCOCK & GRISCHEK 2002).

The beneficial filtration process occurs mainly in two zones: a biologically active layer where intensive degradation and adsorption processes occur within a short residence time; and along the main flow path between the surface water body and the abstraction well where degradation rates and sorption capacities are lower and mixing processes more quickly (HISCOCK & GRISCHEK 2002; SCHMIDT et al. 2004).

Beneficial Effects of Bank Filtration

Factsheet Block Body

Due to its easy implementation and little maintenance requirements, BF is considered to be a useful drinking water (pre-)treatment method for developing and newly-industrialised countries. BF systems are particularly known for the efficient removal of pathogens, suspended solids, toxic algae, or organic trace compounds (e.g. pharmaceutical products) from surface water, all being water quality parameters of high relevance (SPRENGER et al. 2006; HUELSHOFF et al. 2009). Experience from Europe has demonstrated that BF is suitable to remove a range of organic and inorganic contaminants while an exhaustion of cleaning capacity has not been observed (SCHMIDT et al. 2003).

BF offers freshwater storage in times of heavy precipitation (e.g. during monsoon) or elevated stream run-off (e.g. snow melt from higher altitudes). Underground freshwater stocks are protected from evaporation and deterioration (JIMENES 2008). They can be stored until dry weather conditions require groundwater abstraction to meet water demand (HUELSHOFF et al. 2009). This will be increasingly useful with the more extreme weather patterns that are being anticipated with climate change and that pose challenges to developing countries, which are usually more vulnerable to water shortages or flooding (HUELSHOFF et al. 2009).

BF systems can mitigate shock loads resulting from chemical spills or defects in industrial wastewater plants. Furthermore, they can even out temperature differences between surface water and groundwater aquifers; for instance when rivers receive cooling water from a power station (SCHMIDT et al. 2003).

Because of its relatively low cost and the fact that neither high-tech nor highly skilled labour is required, BF is suitable as a water purification tool in developing countries (SPRENGER et al. 2006).

Treatment Processes of Bank Filtration

Factsheet Block Body

(Adapted from HUELSHOFF et al. 2009)

Several physical, chemical and biochemical processes are responsible for the improvement of water quality during subsurface passage (SHARMA & AMY 2009). The processes that remove substances in the bank filtrate include:

  • Straining or filtration: The mechanical filtration process retains suspended matter in the soil, depending on pore throat size.
  • Biodegradation and decay: biodegradation and radioactive decay are the only sustainable removal processes. Biodegradation is the main driver for redox processes occurring during subsurface passage and is responsible for the breakdown of dissolved and/or sediment-bound organic matter.
  • Sorption and desorption: Trace elements such as iron, manganese and various heavy metals are eliminated during ground passage, mainly by sorption processes (SCHMIDT et al. 2003) and by accumulating on the surface of an adsorbent or substrata. Biological contaminants such as protozoa, bacteria and viruses are reduced by a combination of processes including adsorption to aquifer materials and inactivation (SCHMIDT et al. 2003).
  • Ion exchange: In aerobic aquifers, removal is achieved by ion exchange processes at negatively loaded surfaces of clay minerals, amorphous ferric oxides and alumina and organic solid matter (SCHMIDT et al. 2003).
  • Chemical precipitation: In anoxic aquifers, the removal of metal ions is dominated by precipitation reactions with sulphide (SCHMIDT et al. 2003) when insoluble compounds form and precipitate from the solution.

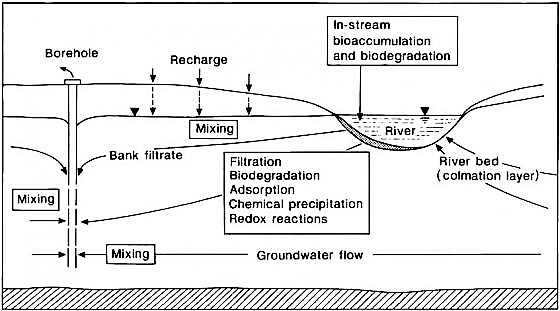

Schematic diagram of processes affecting water quality during the bank filtration process
Schematic diagram of processes affecting water quality during the bank filtration process. Source: HISCOCK & GRISCHEK (2002)



The removal of biological contaminants through BF is most efficient when groundwater velocity is slow and when the aquifer consists of granular materials with high grain surface contact. Levels of many organic micropollutants can be reduced or even eliminated during both aerobic and anaerobic underground passages (MUELLER et al. 2010; MAENG et al. 2009). Attenuation is extremely dependant on the underlying redox processes (SCHMIDT et al. 2004). The purification capacity of BF schemes regarding surface-water pollutants depend on (SCHMIDT et al. 2003):

  • Quality of the surface water
  • Geological conditions
  • Porosity of the soil (flow velocity)
  • Covered distance determined by the permeability
  • Hydraulic residence time of the water in the soil
  • Hydraulic potential in the aquifer
  • Temperature (see HUELSHOFF et al. 2009)
  • PH-values
  • Oxygen concentration



Despite BF being widespread in Central Europe, knowledge about processes during BF is still scarce. Especially information about the physical, chemical and biological processes of water purification, extension of the active sand filter zone, significance of bank vegetation for water purification, hydraulic permeability with its clogging phenomenon (GUENTER 2011) and influence of changing environmental conditions on the operation of BF schemes is rare (HUELSHOFF et al. 2009).

Examples of Bank Filtration

Factsheet Block Body

BF provides about 50% of potable water supplies in the Slovak Republic and 45% in Hungary (HISCOCK & GRISCHEK 2002). In Germany, more than 300 water works use BF and about 16% of German drinking water is produced from bank filtrate.

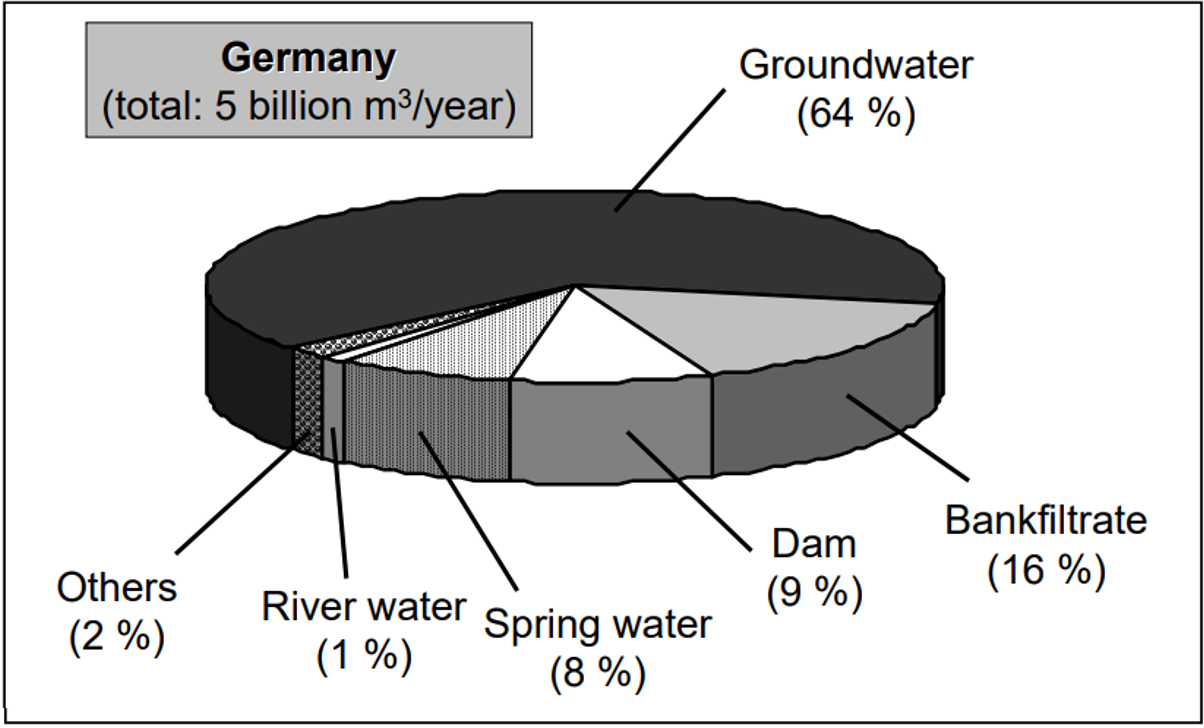

Sources used for drinking water production in Germany
Sources used for drinking water production in Germany. Source: SCHMIDT et al. (2003)



In Central Europe, increasing chemical pollution, high concentrations of ammonia, organic compounds and micropollutants in the river water called for the introduction of supplementary pre- and post-treatment steps to build up a multi-barrier system. Aeration or ozone may be used to oxidise iron and manganese, or to activate carbon for adsorption of and protection against more persistent contaminants.

Today nearly all water utilities situated along large rivers use granular activated carbon filters, often combined with isolation and filtration (SCHMIDT et al. 2003).

A series of bank filtrate recovery wells along the Ruhr river in Hattingen (Germany)
A series of bank filtrate recovery wells along the Ruhr river in Hattingen (Germany). Source: VINCENTZ (2008)

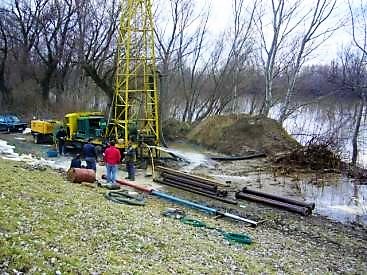

Construction of bank filtrate recovery wells in the Vojvodina region, Serbia, where alternatives had to be found because of problematic substances in the deep groundwater aquifer (e.g. high arsenic concentration)
Construction of bank filtrate recovery wells in the Vojvodina region, Serbia, where alternatives had to be found because of problematic substances in the deep groundwater aquifer (e.g. high arsenic concentration). Source: TZW (2008)



Applicability

(Adapted from HUELSHOFF et al. 2009)

For the operation of a BF system, some basic requirements have to be met. The availability of surface water as a primary source is essential. A second major consideration is the groundwater level in the surroundings of the BF well. They should not decline below an ecologically and economically justifiable threshold value due to operation. Water abstraction should not result in adverse effects on the aquifer (overexploitation, damage to ecosystems) or the river downstream of the BF site (e.g. dependent settlements being water-deprived).

The design of BF systems usually requires a detailed hydro-geological site investigation and knowledge about the hydrological characteristics of the catchment. A successful BF operation depends on surface water quality, soil texture and soil quality.

The quality of water (e.g. salinity) and the soil at the geologic site (e.g. amount and solubility of arsenic content, redox conditions) are factors to be assessed prior to water abstraction for potable use. Pollutants in soil may be of geogenic (e.g. arsenic) or anthropogenic origin (e.g. heavy metals from an industrial site, nitrate from agriculture) and render bank filtrate objectionable.

Further, the soil texture should have filter properties. Limestone and dolomite bedrocks, for instance, are rich in fissures and allow for rapid water travel times. They are therefore unfavourable for the removal of water contaminants. Suitable soil textures for BF are sand and gravel aquifers with hydraulic conductivities kf (permeability) greater than 0.0001 m/s, a minimal thickness of 5 m and a good hydraulic connexion to the adjacent surface water (TZW 2006).
