Surface Irrigation

Author/Compiled by
Beat Stauffer (seecon international gmbh)
Dorothee Spuhler (seecon international gmbh)

Executive Summary

Surface irrigation is mainly divided in basin, border, and furrow systems. It is widely utilised and therefore a well-known system, which can be operated without any high-tech applications. In general, it is more labour intensive than other irrigation methods. Proper design of surface irrigation systems takes into account the soil type (texture and intake rate), slope, levelness of the field, stream size, and length of run. It is generally more difficult to obtain high uniformity of water distribution in long fields on coarse textured soils (gravel and sands) than on fine textured soils (loams to clay) (HILL 2008). Levelling the fields and building the water ditches and reservoirs might be expensive, but once this is done, costs are low and the self-help capacity is very high.

Advantages
Because it is so widely utilised, local irrigators generally have at least minimal understanding of how to operate and maintain the system (WALKER 1989)
Surface irrigation systems can be developed at the farm level with minimal capital investment (WALKER 1989)
The essential structural elements are located at the edges of the fields, which facilitates operation and maintenance activities (WALKER 1989)
If the topography is not too undulating, these costs are not great (WALKER 1989)
Energy requirements for surface irrigation systems come from gravity (WALKER 1989)
Surface irrigation systems are less affected by climatic and water quality characteristics (WALKER 1989)
The gravity flow system is a highly flexible, relatively easily managed method of irrigation (WALKER 1989)
Disadvantages
The soil, which must be used to convey the water over the field, has properties that are highly varied both spatially and temporally (WALKER 1989)
Surface irrigation systems are typically less efficient in applying water than either sprinkler or trickle systems (WALKER 1989)
The need to use the field surface as a conveyance and distribution facility requires that fields be well graded if possible (WALKER 1989)
Surface systems tend to be labour-intensive (WALKER 1989)
In Out

Precipitation, Freshwater, Fertigation Water, Treated Water

Food Products

Introduction

Factsheet Block Body

Surface irrigation stands for a large group of irrigation methods in which water is distributed by gravity over the surface of the field (note: surface irrigation does not include spate irrigation). The three most common methods are basin irrigation, border irrigation and furrow irrigation. Water is typically introduced at the highest point or along the edge of a field, which allows covering the field by overland flow. Historically, surface irrigation has been the most common method of irrigating agricultural land. The defining feature of surface irrigation methods is that the soil is used as the transport medium (as opposed to pipelines (see subsurface irrigation, drip irrigation or through the air, as with sprinklers).

Surface irrigation methods contain two basic categories: ponding (surface water pooled in a puddle) and moving water. The moving water methods require some runoff or ponding to guarantee adequate infiltration at the lower end of the field. The soil type controls the length of the run and the depth of infiltrated over time. The better the quality of the soil is the less is the unnecessary runoff and the better the infiltration into the soil and therefore the use for the crops (BURT 2000). Due to ponding however, it is important not to irrigate the crops during the day but in the early morning or at night in order to avoid water loss due to evaporation.

Each surface system has its own unique advantages and disadvantages depending on such factors as initial development costs, size and shape of individual fields, soil characteristics, nature and availability of the water supply, climate, cropping pattern, social preferences and structures, and historical experience (WALKER 2003).

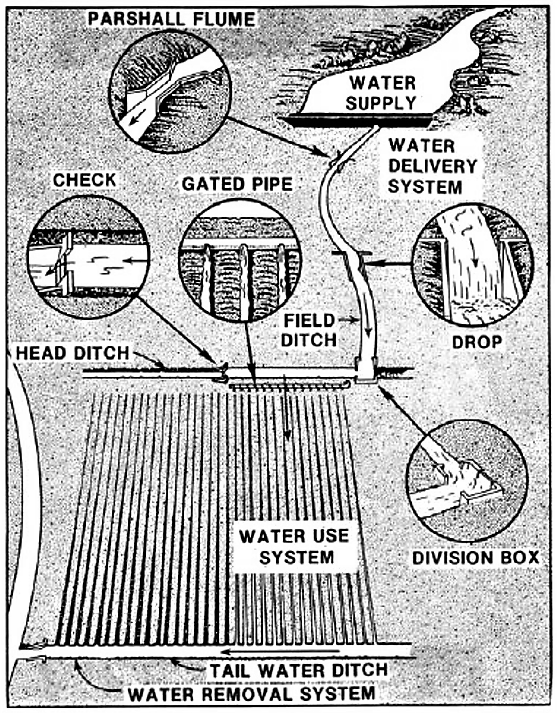

Typical elements of a surface irrigation system. Source: WALKER (2003)
Typical elements of a surface irrigation system. Source: WALKER (2003)



Basic Design Principles

Factsheet Block Body

Basin Irrigation

Basin irrigation is the most common form of surface irrigation, particularly in regions with layouts of small fields. If a field is level in all directions, is encompassed by a dyke to prevent runoff, and provides an undirected flow of water onto the field, it is herein called a basin.

If the basins are small or if the discharge rate available is relatively large, there are few soils not amenable to basin irrigation. Generally, basin irrigation is favoured by moderate to slow intake soils and deep-rooted, closely spaced crops. Crops, which do not tolerate flooding and soils subject to crusting can be basin irrigated by furrowing or using raised bed planting. Basin irrigation is an effective method of leaching salts from the soil profile into the deeper groundwater.

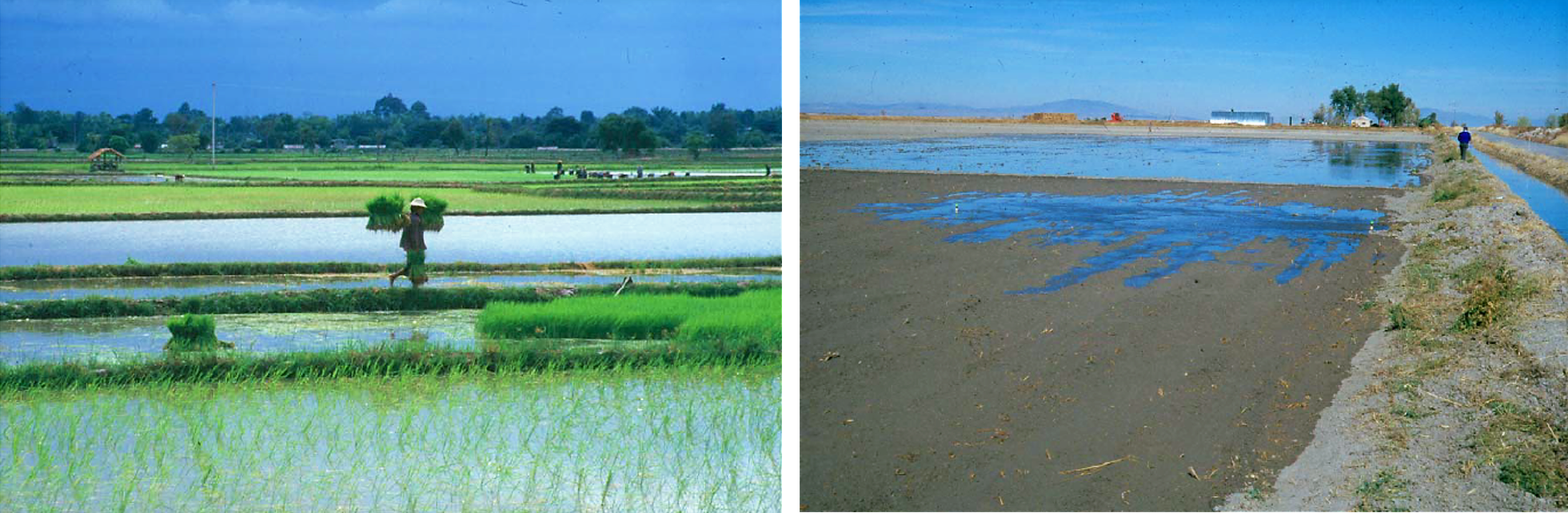

Two typical surface basin irrigation fields. Source: WALKER (2003)
Two typical surface basin irrigation fields. Source: WALKER (2003)



Basin irrigation systems can be automated with relatively simple and inexpensive flow controls at the basin inlet. However, basin irrigation has a number of limitations in association with agriculture in the less developed countries: Accurate land levelling is prerequisite to high uniformities and efficiencies, but this is difficult to accomplish in small areas;the perimeter dikes must be well maintained to eliminate breaching and waste; and it is difficult and often infeasible to incorporate the use of modem farm machinery in small basins, thereby limiting small-scale basin irrigation to hand and animal powered cultivation (WALKER 2003).



Border Irrigation System

In many circumstances, border irrigation can be viewed as an expansion of basin irrigation to include long rectangular or contoured field shapes, longitudinal but no lateral slope, and free draining or blocked conditions at the lower end.

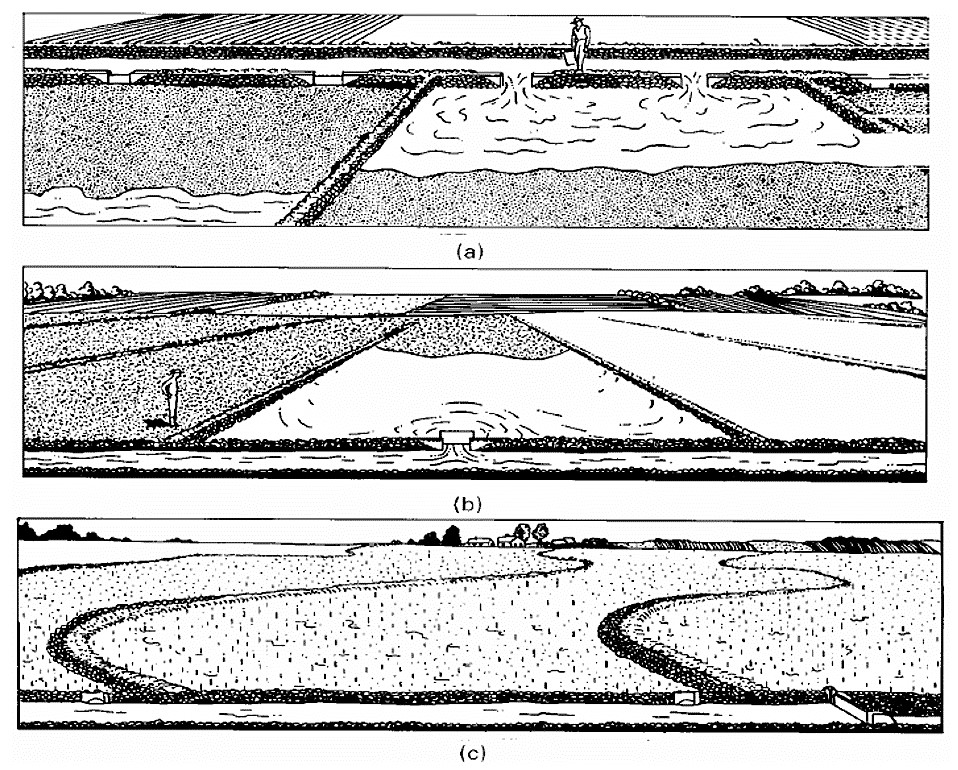

Examples of border irrigation systems. (a) Typical graded border irrigation system. (b) Typical level border irrigation system. (c) Typical contour levee or border irrigation system. Source: WALKER (2003)
Examples of border irrigation systems. (a) Typical graded border irrigation system. (b) Typical level border irrigation system. (c) Typical contour levee or border irrigation system. Source: WALKER (2003)



In border irrigation, a field is divided into strips separated by border ridges running down the slope of the field. The width of the stripes is usually from 20 to 100 feet (6 to 30 metres). The area between the ridges is flooded during irrigation. Border irrigation is used for tree crops and for crops as alfalfa (Medicago sativa) and small grains (UCCE 2003).

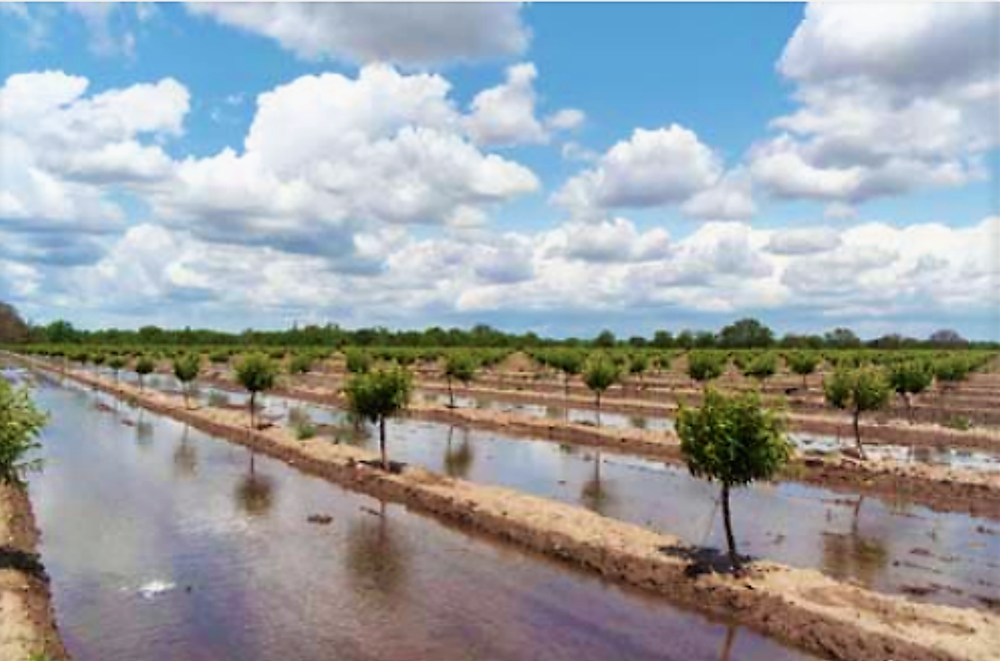

Tree crops irrigated by a surface border system. Source: UCCE (2005)
Tree crops irrigated by a surface border system. Source: UCCE (2005)



Furrow Irrigation

An alternative to flooding the entire field surface is to construct small channels along the primary direction of water movement. Water introduced in these furrows infiltrates through the wetted perimeter and moves vertically and laterally thereafter to refill the soil. Furrows can be used in conjunction with basins and borders to overcome topographical variation and crusting (WALKER 2003). Furrows are well adapted to row crops and orchards or vineyards (BURT 2000).

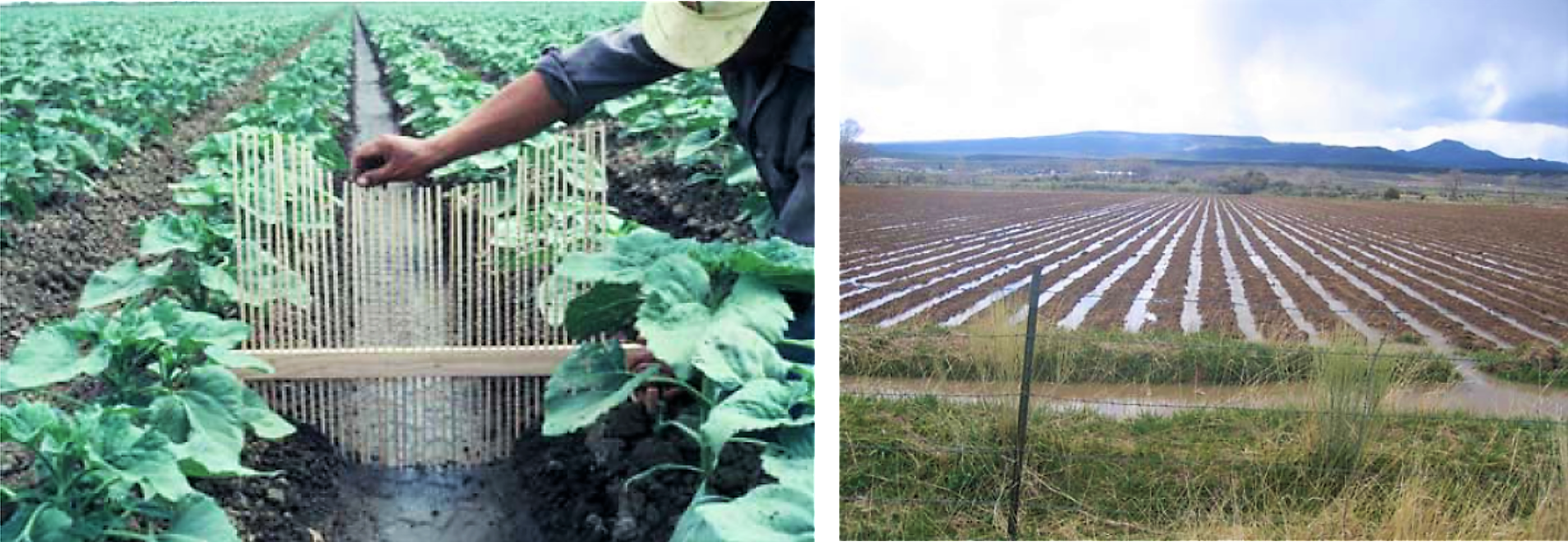

Left: Measuring of a single furrow shape. Right: A field irrigated by furrows. Source: WALKER (2003) and HILL et al. (2008)
Left: Measuring of a single furrow shape. Right: A field irrigated by furrows. Source: WALKER (2003) and HILL et al. (2008)



Furrow systems require more labour than border or basin systems. Some disadvantages are salinity hazards between the furrows, limited machinery mobility across the lateral field direction and an increased erosion potential. On the other hand, topographical conditions can be more severe and variable, and the smaller wetted area can reduce evaporation loss (WALKER 2003).

The three most important hardware items for an efficient furrow irrigation are (BURT 2000):

  • A tailwater return flow system, which incorporates a reservoir
  • Short furrows for an acceptable advanced ratio
  • A large variable water supply stream



The Importance of the Soil Type

Factsheet Block Body

There is one disadvantage of surface irrigation that confronts every designer and irrigator. The soil, which must be used to convey the water over the field, has properties that are highly varied both spatially and temporally. They become almost indefinable except immediately preceding the watering or during it. This creates an engineering problem in which at least two of the primary design variables, discharge and time of application, must be estimated not only at the field layout stage but also judged by the irrigator prior to the initiation of every surface irrigation event. Thus, while it is possible for the new generation of surface irrigation methods to be attractive alternatives to sprinkler and trickle systems, their associated design and management practices are much more difficult to define and implement (WALKER 1989).

Costs Considerations

Factsheet Block Body

Levelling the fields and building the water ditches and reservoirs might be expensive, but once this is done, costs are low and the self-help capacity is very high. Thus, the expected life of the system, fixed costs, and annual operation costs (energy, water depreciation, land preparation, maintenance, labour, taxes, etc.) should be included in the analysis when selecting an irrigation system (WALKER 2003). The water allocation is done by gravity, therefore no energy is required. On the other hand, a surface irrigation system is labour intensive, which should be considered.

Operation and Maintenance

Factsheet Block Body

Good operation of any irrigation system includes matching the irrigation duration with the rate of application and the intake rate of the soil to maximise the fraction of water stored in the root zone. Operation of surface irrigation requires being there to “tend” the water, i.e. to move the water to successive application points as it reaches the end of the run. (HILL et al. 2008).

Ditches should be cleaned out at least annually and more often if needed. A shovel can be used to clean smaller ditches. A mechanical ditcher and tractor is very helpful on larger ditches. Often ditch cleaning is an early spring “rite” to be completed prior to the first delivery of water. Many irrigation and canal companies require that shareholders maintain their own head gates and keep them in good operating condition. In areas where rodent damage is a problem, “tromping gopher holes” or otherwise fixing leaks in ditches may be a daily chore. Periodic re-levelling of surface irrigated fields may be needed to compensate for soil settlement or consolidation over time (HILL et al. 2008).

At a Glance

Factsheet Block Body

Working Principle

There are three main surface irrigation systems: Basin (flooded field), border (the field is divided into stripes) and furrow (small channels along the primary direction of water movement). The water is distributed by gravity over the surface of the field

Capacity/Adequacy

As long as the field can be levelled it can be implemented.

Performance

It is an old approved system and therefore it has a high performance

Costs

If topography is uneven, capital costs are high. Furthermore, it is a labour intensive system, which could raise the costs.

Self-help Compatibility

High

O&M

Ditches should be cleaned out periodically; leaks have to be fixed as fast as possible.

Reliability

If it is well maintained and the ditches are clean it is very reliable.

Main strength

It is widely utilised and users have at least a minimal understanding of how to operate and maintain. Furthermore, the water is distributed by gravity.

Main weakness

The soil, which must be used to convey the water over the field, has properties that are highly varied both spatially and temporally. They become almost indefinable except immediately preceding the watering or during it what makes design kind of difficult

Applicability

This system depends on three factors: type of soil, water quality and climate, plant and labours. If the soil is very permeable, it is difficult to transport the water over the surface and may not the entire field will be irrigated. But surface irrigation is not negatively influenced by winds or sediments and debris as are sprinkler systems.

Moreover, salinity is less of a problem under surface irrigation because of less risk of clogging pipes and salts can be leached from the soil profile. Surface irrigation is not a high-automated system, what makes it more simple, but it requires therefore also more labours.
