Fertiliser from Urine (Struvite)

Compiled by:
Analiza Miso (Xavier University, SUSAN Center, Philippines), Dorothee Spuhler (seecon international gmbh)
Adapted from:
EAWAG (Editor) (2009)

Executive Summary

Urine in the ecosystem causes eutrophication or algae blooms, which suffocates fish and kills aquatic ecosystems. Urine is so effective at helping algae grow because it is rich in nitrogen, potassium, and phosphorus; these are the three main ingredients found in commercially produced fertilisers. Struvite produced from urine can be applied to fields just like any other fertiliser. In a simple granulation drum, the powder can be transformed into granules. In granular form, a fertiliser is easier to apply and does not cake in moist environments. Struvite performs comparably to diammonium phosphate (DAP) fertiliser.

In Out

Urine, Yellow Water

Fertiliser

Introduction

Nitrogen and phosphorus are two major valuable nutrients found in urine, which are both essential macronutrients for the plants (see also nutrient requirements). Huge quantities of urine are most often difficult to transport and to keep due to its unpleasant odour. To overcome these issues, Struvite can be produced. Struvite (MgNH4PO4•6H2O), sometimes also called Magnesium Ammonium Phosphate Hexahydrate (M-A-P), has many of the fertilising properties of urine with several advantages: the volume and weight are reduced, it can be stored in a compact form and it is easy to handle, transport and apply- especially in a granulated form.



 PAQUES (2007)

Struvite Granulate. Source: PAQUES (2007)

Struvite is a naturally occurring precipitate in aged urine. It is formed out of some of its compounds when the pH-level of the urine exceeds a distinctive level due to chemical changes happening during storage. The Struvite molecules are formed through a combination of dissolved magnesium, ammonium and phosphate ions. Since the concentration level of magnesium is considerably lower than the concentration of the other compounds this natural process stops when all the magnesium ions in solution are fixed. However, this process can be stimulated again by artificially adding magnesium to the stored urine. By this, the precipitation of Struvite continues until one of the other in the process involved components (ammonium and phosphate) are depleted. In normal urine, the concentration of phosphate is subsequently the limiting factor. The artificial addition of magnesium to urine is therefore a very convenient way of fixing the phosphorus and a part of the nitrogen that is contained in urine (TILLEY et al. 2008; UDERT 2002; UDERT et al. 2006) (see also producing struvite from urine).


Use of Struvite in Agriculture

      GANROT, Z. (n.y.).

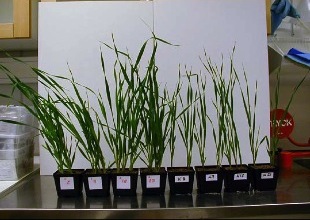

This development leads to water scarcity and conflicts worldwide and seriously undermines progress towards achieving the MDGs. Wheat grown in sand, fertilised with Struvite (pots with red mark) compared to controls. Source: GANROT (n.y.).

According to it’s chemical composition, Struvite has an NPK-value of approximately 6:29:0:(Mg)10. It shows some advantageous properties like a slow nutrient release and good P availability.As regards the plant availability of phosphorus (P) from struvite, it was found that there is no significant difference between struvite and mono-calcium phosphate, a source of water soluble P that is generally considered to be fully plant available. However, the plant available nitrogen is not enough for optimal growth, but higher struvite application would significantly increase the soil pH level to a degree where it might have negatively affected nutrient availability and uptake. Moreover, the magnesium content is very high. In general, the average amount of nutrients that should be applied to the soil should follow the order N >= K > P > Mg. It is therefore suggested that for an optimal use, a combination of other fertilisers together with struvite should be used. Especially an increase of the nitrogen content would be advisable since nitrogen is the nutrient that most of the farmers look for. Most suitably a ready-made mixture with an optimal nutrient ratio could be supplied.


Quality and Costs of Struvite Fertiliser

One of the big advantages of Struvite that might be recognised by the local farmers is for its purity and product reliability. Whereas the industrially supplied chemical fertilisers are likely to be polluted with unwanted side products and heavy metals, even when coming from official channels. For fertilisers coming from informal sources (>60%) even the actual nutrient concentration itself is of big question. As locally produced fertiliser like struvite would surely get more credit from farmers because its source is known and a reliable availability can be expected. This might even be a factor supporting a higher price compared to other fertilisers.

For further information, see also producing struvite from urine or nutrient requirements.

Applicability

Amongst the possibilities for nutrient recovery from urine, struvite precipitation is technologically most accessible, as it does not necessarily involve any sophisticated apparatus (see producing struvite from urine). Where direct application of urine is not an option, and external sources of nutrients are not available or economically or environmentally not adequate, struvite may serve as an intermediate solution between on-farm nutrient recycling and global nutrient transfer.

Urine collection (labour) and transport (fuel) accounts for a large proportion of the costs, and therefore struvite production is more appropriate for areas where large volumes of urine are available within a small area; public toilets, schools and stadia are promising sources of urine. Magnesium should be available in a suitably soluble form, in sufficient quantities and at an affordable price to allow for an economic operation of the struvite production plant. Whereas direct application of urine may face low social acceptance, struvite, as a urine-derived but odourless product is generally well accepted.

In order to establish struvite production as an additional and beneficial usage option for source separated urine from UDDT toilets the acceptance by the community is of central and decisive importance. Only if the local farmers perceive it as a viable, comfortable and profitable usage option they will incorporate it into their farming practices.

Advantages

  • Volume and weight of carrying urine is reduced
  • Nutrients can be stored over time
  • Handling is more user-friendly in powder form
  • Bio-available: The nutrients in struvite can be readily absorbed by the plant
  • Slow-release: Due to its low solubility, struvite guarantees a slow but steady nutrient supply
  • Highly pure: contaminants (e.g. pharmaceuticals or heavy metals), which may be present in the urine, do not precipitate with the struvite

Disadvantages

  • High cost for the set-up of the reactor and the urine collection system
  • Dependent on the socio-cultural acceptability
  • Limited knowledge on the part of the farmers
